Strengthen your pneumatic systems with Airmax Pneumatic’s Siko Series 5/2 Way Push Pull Valve Spring Return & Detent! For over three decades since 1992, we have been leading manufacturers and exporters of 5/2 Way Push Pull Valve Spring Return & Detent in Ahmedabad, India.

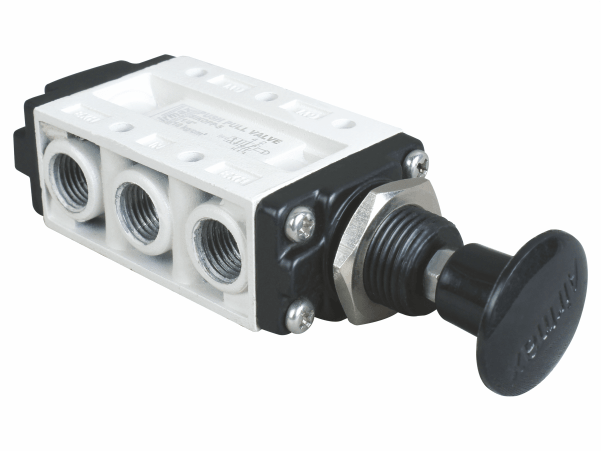

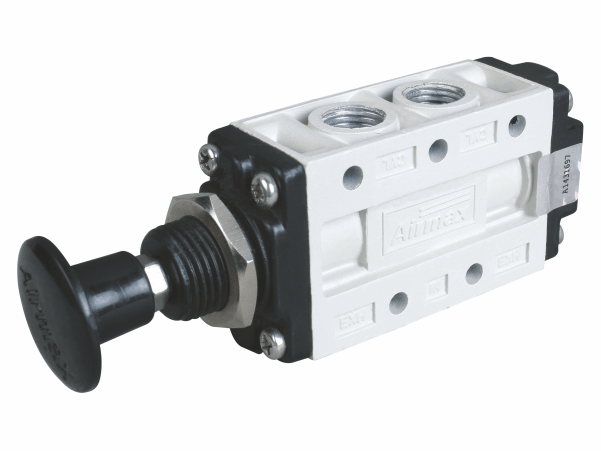

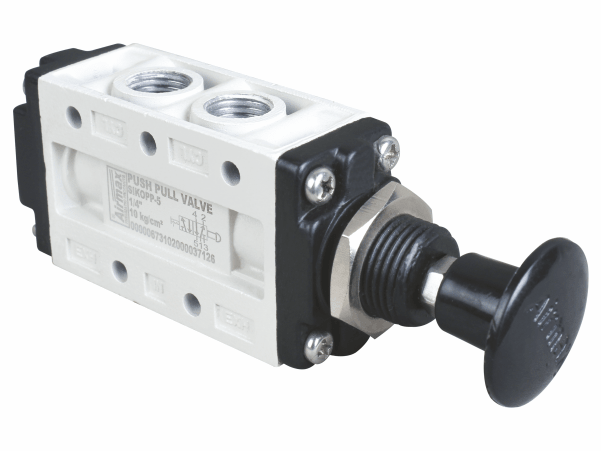

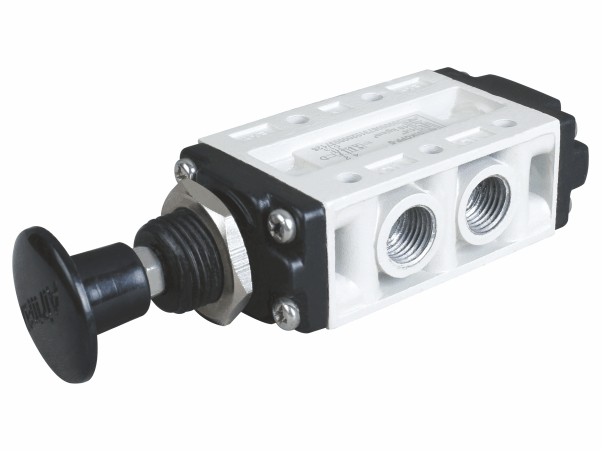

This valve is made of solid aluminum press die cast and has anodized seals for superior durability and corrosion resistance. Its bubble-tight sealing is optimal for filtered and lubricated compressed air, assuring optimal efficiency and performance in your operations.
The spring return mechanism offers an accurate automatic reset to a safe position, and the detent function gives positive positioning feedback, improving operating safety and control. This valve is ideal for a wide range of industrial applications, including automation and robotics, and it will help you boost both efficiency and dependability.
The 5/2 Way Push Pull Valve Spring Return & Detent is ideal for simple operations, while the AD – 20 series 5/2 way push pull valve excels in automation systems requiring more control.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name |
5/2 Way Push Pull Valve Spring Return & Detent |
| Model |
SIKOPP-5 |
| Size |
1/4″ |
| Design |
Spool type, |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) |
0.2 |
