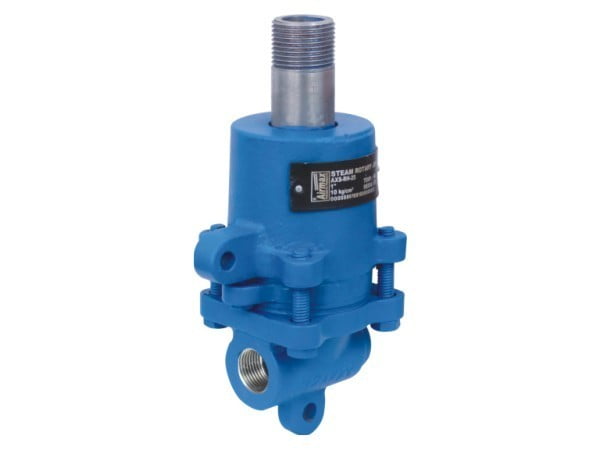

Airmax Pneumatics’ Rotary Joint for Steam (AXS) is developed for efficient and dependable steam transfer in industrial applications. Built to withstand pressures up to 10 Kg/cm² and temperatures up to 180˚C, it enables smooth functioning even in high-temperature situations. Available in diameters ranging from 1/2″ to 2″, this joint is simple to maintain and constructed to last.
As a manufacturer and supplier of durable rotary joints for high-temperature steam flow, we ensure that our products meet the highest standards of quality and performance. It is ideal for the automotive, plastic and rubber, textile, and packaging industries, ensuring consistent performance under harsh situations.
Ensure efficient condensate removal with our Steam Trap Float Type Valve, designed for smooth steam system operation.
- Design for steam applications.
- Optimized seal diameter.
- Convex seal ring in compression.
- Adjusting syphon clearance option.
| Technical Specifications |
| Product Name |
Rotary Joint for Steam |
| Model |
AXS |
| Size |
1/2″, 3/4″, 1″, 1.1/4″, 1.1/2″ & 2″ |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
Upto 180 °C |
| Leakage |
Bubble Tight |
| RPM |
200 Max. |
| Media |
Only for Steam |
