RMS Model Heavy Duty Pneumatic Cylinder

High Quality RMS Model Heavy Duty Pneumatic Cylinder in Gujarat

Product Details

Bore (mm) 125 l 150 l 200 l 250 l 300 l 350 l 400 l 450
Piston Rod 032 l 032 l 038 l 051 l 051 l 056 l 056 l 070
Stroke Up to 2500mm
Seals Buna – N / P.U. / Hi - Nitril (Viton on Request)
Pressure Up to 12 kg/cm²
Temperature 80°C / 100°C / 180°C Max.
Tube Stainless Steel / M.S. Tube (M.S. Seamless Tube with Hard Chrome Plated )
End Cover C.I.
Mounting

Center Trunnion Mounting, Pivot Mounting, Eye Rod Mounting, Fork Mounting, Center Lug Mounting, Center Trunnion Mounting (Adjustable), Pivot Bracket & Pin Mounting, Flange Mounting, Front/Rear Trunnion Mounting (Fixed), Front/Rear Fixed Trunnion Mounting Top, Foot Bracket Mounting, Center Trunnion Mounting (Adjustable)
Download Inquiry
Technical Specifications
Product Name RMS Model Heavy Duty Pneumatic Cylinder
Bore Size (mm) 125 150 200 250 300 350 400 450 – –
Stroke Upto 2500 mm
Cushion Available at both ends
Barrel Stainless Steel
Piston Rod EN 8 With hard chrome plated (25 microns around the shaft)
Piston Rod Dia 32 38 51 56 70 – – – – –
End Cover Aluminum, Pressure Die Cast
Sales Polyurethene, Nitrile
(Viston seal available on request for high temperature)
Surface Treatment Auto Finish Enameling end cover & cylinder barrel

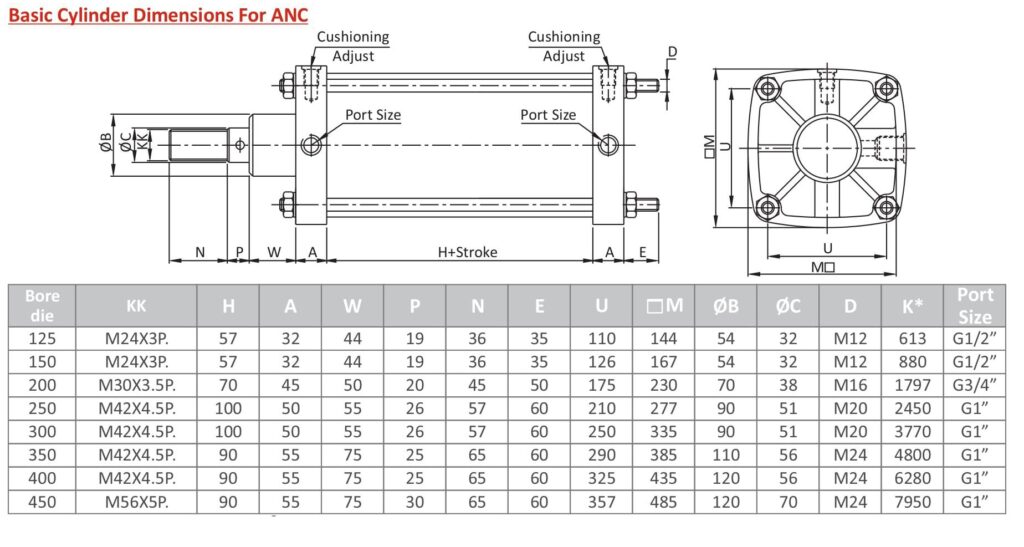

Mounting Std. Mounting Available (For More Detailes See Dimension)
