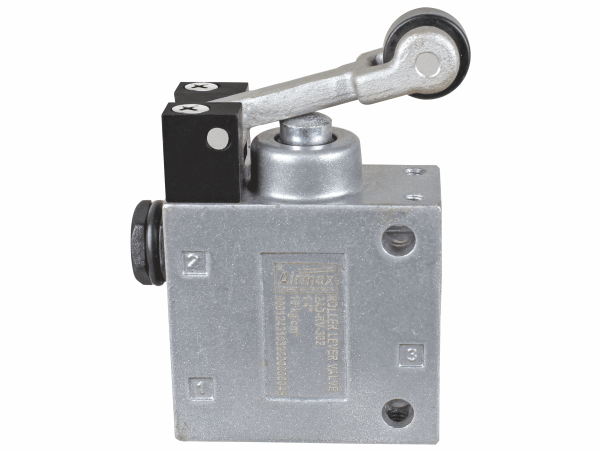

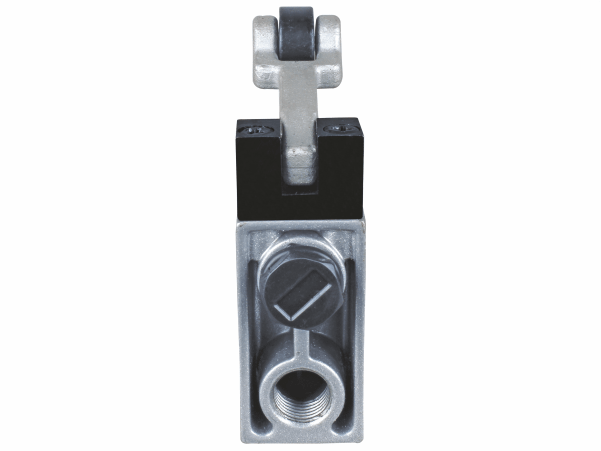

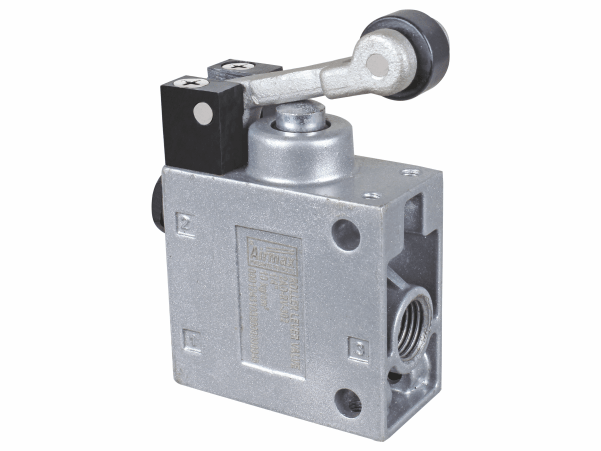

The 3/2 Poppet Type Roller Lever Valve, manufactured by Airmax Pneumatic in Ahmedabad, India, is used to control the flow of compressed air in pneumatic systems. It is known for its compact and lightweight design, along with its durability. The valve is also easy to install and maintain, making it a great choice for a variety of applications.
For rapid switching, use a 5/2 Poppet Type Roller Lever Valve in tandem with a 3/2 to handle various pneumatic tasks.
- Compact Design
- Durable
- Light Weight
- Standard Grade MOC
- Smart International Design Look
- Epoxy Treated Surface
- Replaceable & Repairable Parts
| Technical Specifications |
| Product Name |
3/2 Poppet Type Roller Lever Valve |
| Model |
2AD-RV-302 |
| Size |
1/4″ |
| Design |
Poppet Type |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
Upto 60 ˚C |
| Leakage |
Bubble Tight |
Recommended
for Lubrication |
ISO VG32 (Servo System 32) |
| Flow |
600 LPM |
| Media |
Compressed Air ( Filtered & Lubricated ) |
