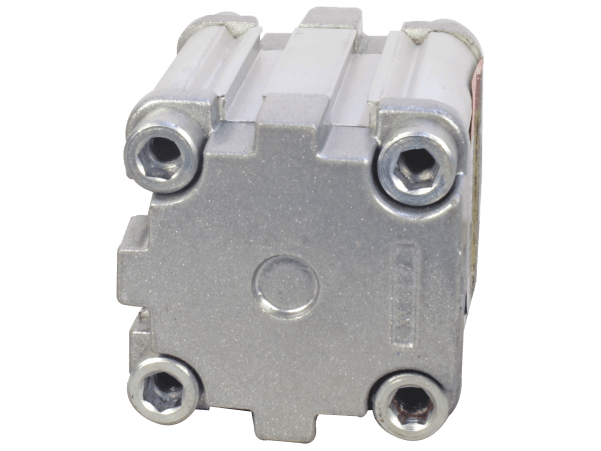

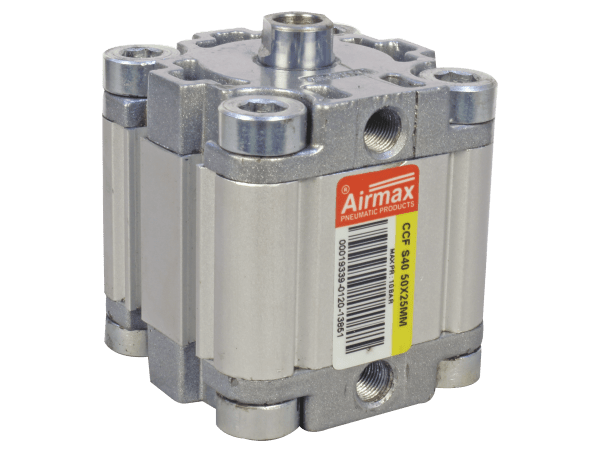

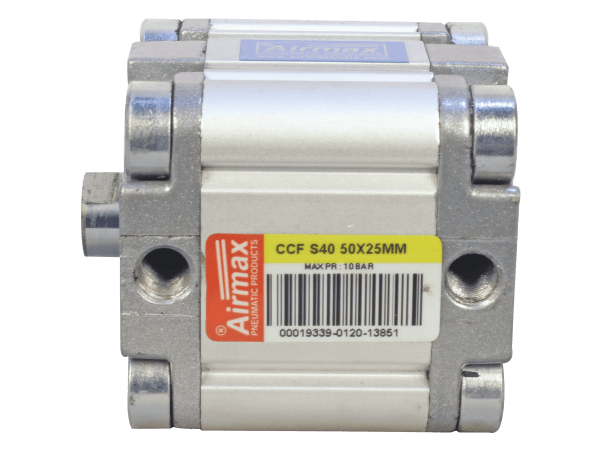

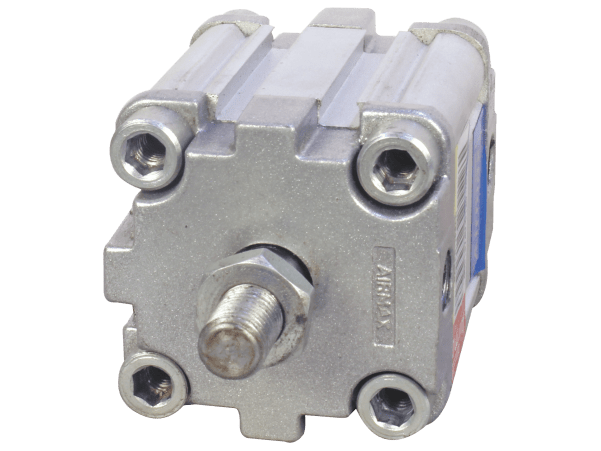

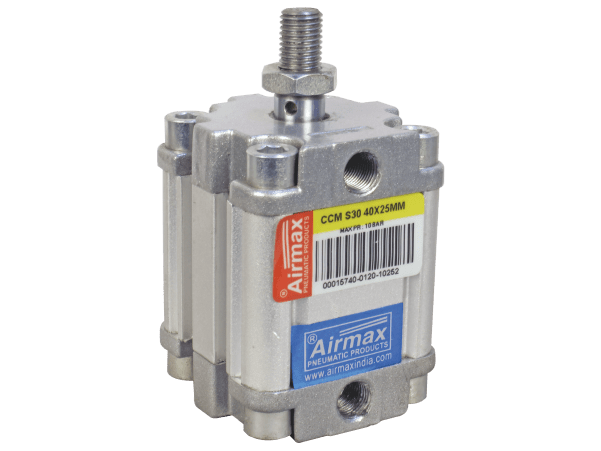

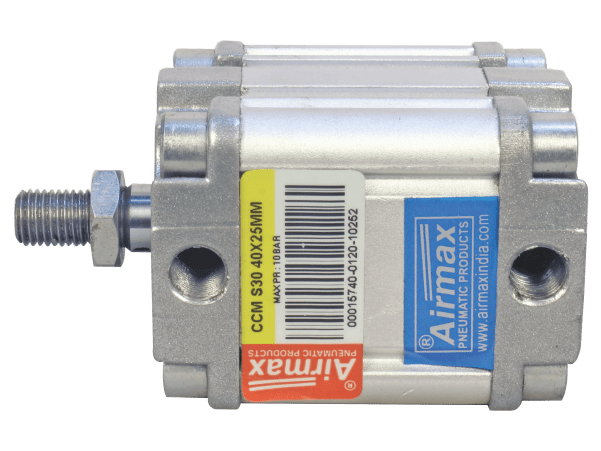

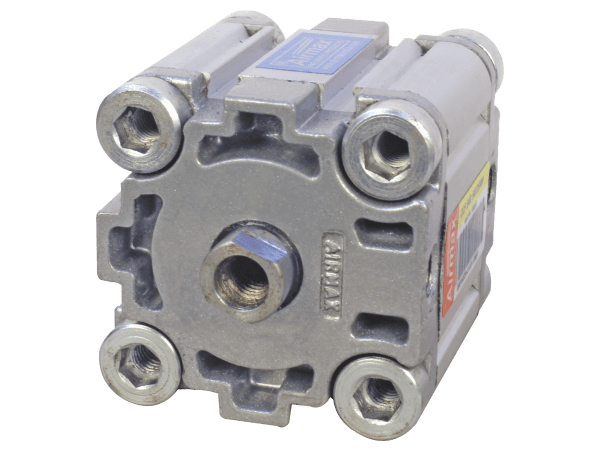

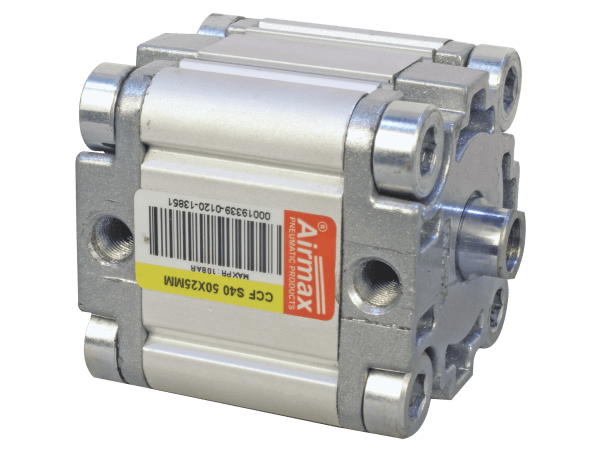

CCM & CCF Pneumatic Cylinder

Compact Pneumatic Air Cylinder Manufacturers & Supplier in India



Product Details

Bore (mm) 32 l 40 l 50 l 63 l 80 l 100
Piston Rod 12 l 12 l 16 l 16 l 20 l 20
Stroke 10mm to 80mm
Seals Buna – N / P.U / Hi - Nitril (Viton on Request)
Pressure 0.5 ~ 10 kg/cm²
Temperature 5°C to 60°C Max
End Cover Aluminium Pressure Die Cast
Mounting

Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting
Barrel Aluminium Hard Anodized
Note Viton Seals available on Request for High Temperature
Download Inquiry
Technical Specifications
Product Name CCM & CCF Pneumatic Cylinder
Bore Die 32 40 50 63 80 100
Stroke (mm) 5 10 15 20 25 30 40 50 60 70 80
Cushion Aluminum
Barrel Polyurethene, Nitrile (Viton seal available on request for high temperature)
Piston Rod 0.5 – 10 Bar
End Cover 5˚ – 60˚C max.
Sales Std. Mounting available (for more details see dimension)
Output Force (Force in N : 1N = 0.1 kgf)
Bore die in mm
Rod die in mm
Action
 Working Pressure in Bar
2 3 4 5 6 7 8 9 10
32
12
 Extend 145 217 289 362 434 507 579 651 724
Retract 124 187 249 311 373 435 498 559 622
40
12
 Extend 226 339 452 565 678 792 905 1018 1130
Retract 206 309 411 514 617 720 823 926 1029
50
16
 Extend 353 530 707 883 1060 1237 1413 1590 1767
Retract 317 476 634 793 952 1110 1269 1427 1586
63
16
 Extend 561 842 1122 1403 1683 1964 2244 2525 2805
Retract 525 787 1050 1312 1575 1837 2099 2362 2624
80
20
 Extend 905 1357 1809 2262 2714 3167 3619 4071 4524
Retract 848 1272 1696 2120 2544 2969 3393 3817 4241
100
20
 Extend 1414 2120 2827 3534 4241 4948 5655 6362 7068
Retract 1357 2036 2714 3393 4071 4750 5429 6107 6786
