Shuttle and Check Valves: What Sets Them Apart?

January 1
Shuttle Valve and Check Valves

In the world of fluid control systems, valves play a vital role in dealing with flow and ensuring green operation. Among the full-size array of valves available, trip valves and check valves stand out for his or her precise functions and packages.

This article will explore these two valve kinds, their variations, and their importance in commercial programs, focusing on the modern solutions furnished with the aid of Airmax Pneumatics Ltd.

What is a Shuttle Valve?

A go-back-and-forth valve is a mechanical device that lets in the flow of fluid from two alternative resources to a single outlet. It is generally used in hydraulic and pneumatic systems to direct flow primarily based on strain.

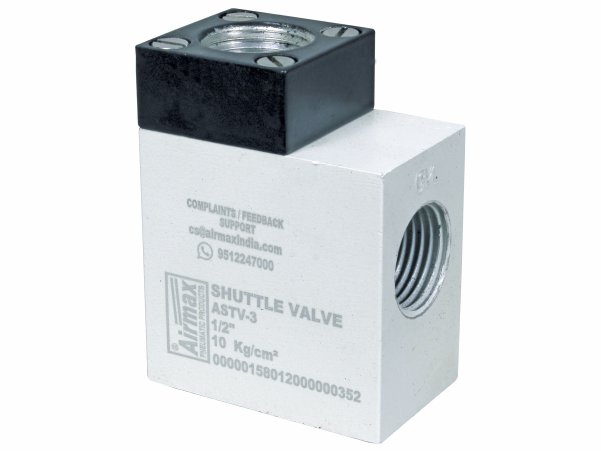

Shuttle Valve

This valve is often referred to as an “OR” valve as it allows flow from both entries, depending on which has the higher strain.

Function of Shuttle Valves:

The primary feature of a shuttle valve is to direct fluid or air flow successfully from certainly one of the assets to a common outlet. This ensures that systems counting on pressurized fluid or air stay operational, although one source fails. Shuttle valves are broadly utilized in programs inclusive of braking systems, emergency operations, and dual-supply supply structures.

Symbol of a Shuttle Valve:

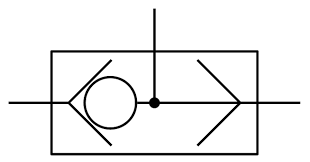

In circuit diagrams, a go back and forth valve is represented through a diamond shape with two inputs (typically labeled A and B) and one output (C).

Shuttle valve - Wikipedia

Symbol of Shuttle Valve

The inner ball or trip movements within the valve to dam one enter at the same time as allowing the other to connect with the output.

What is a Check Valve?

A check valve, additionally known as a non-go back valve or one-manner valve, ensures that fluid flows in the handiest direction. Its easy but crucial layout prevents backflow, safeguarding pumps, compressors, and other gadgets from harm due to opposite drift.

Function of Check Valves:

Check valves are on the whole used to preserve the unidirectional flow of fluids or gases. They are crucial in structures in which backflow should purpose infection, loss of stress, or equipment malfunction. Applications encompass water treatment, oil and fuel pipelines, and HVAC structures.

How to Test a Check Valve:

Testing a test valve is critical to ensure its functionality and reliability. Common strategies encompass:

1.} Pressure Testing: Apply stress to the inlet aspect and ensure the valve blocks reverse flow.

2.} Bubble Test: Submerge the valve in water at the same time as making use of stress; look ahead to bubbles indicating leakage.

3.} Vacuum Test: Check for vacuum retention in systems requiring hermetic seals.

Key Differences Between Shuttle and Check Valves:

While shuttle and check valves are critical to fluid control, they differ notably in purpose and functionality:

  1. Flow Direction:
  • Shuttle Valve: Allows flow from sources to 1 outlet.
  • Check Valve: Allows flow in the handiest path.
  1. Internal Mechanism:
  • Shuttle Valve: Uses a movable go back and forth or ball to pick the better-pressure source.
  • Check Valve: Uses a spring or hinged disc to dam opposite the flow.
  1. Applications:
  • Shuttle Valve: Ideal for structures requiring exchange strength resources.
  • Check Valve: Suitable for preventing backflow and protective devices.

Airmax Pneumatics Ltd.: Your Trusted Partner for Valve Solutions:

When it involves a fantastic commute and taking a look at valves, Airmax Pneumatics Ltd. leads the industry with its progressive designs and dependable solutions. Our valves are designed to satisfy the demands of diverse industries, ensuring durability, precision, and highest quality performance.

Why Choose Airmax Pneumatics Ltd.?

Quality Assurance: Our valves go through rigorous checking out to satisfy international standards.

Custom Solutions: We provide tailor-made valve solutions to shape precise industrial needs.

Expert Support: Our experienced crew gives steering on selecting and retaining valves.

Whether you want a shuttle valve for dual-source structures or a test valve to make certain unidirectional glides, Airmax Pneumatics Ltd. Has the understanding and merchandise to satisfy your requirements.

Conclusion:

Shuttle and take a look at valves may additionally serve extraordinary functions, however, both are crucial for the green operation of fluid manipulate structures. Shuttle valves excel in managing drift from trade assets, even as check valves make certain unidirectional go-with-the-flow and save you backflow.

Understanding their features and applications can assist industries in picking the proper valve for his or her wishes.
For a top-notch trip and take a look at valves, believe Airmax Pneumatics Ltd. Explore our variety of products to enjoy innovation, reliability, and unequaled satisfaction.
