Note: For Lubrication use Oil Grade-ISO VG32 or Equivalent
- High Flow Design
- Heavy Duty & Durable Design
- Comfortable to all industrial use.
- Turn ‘T’ Type key clockwise to Increase Pressure
- Easy Installation
- Precise Regulating Lubrication
- Type of Oil to be used ISO VG32
| Technical Specifications |
| Product Name |

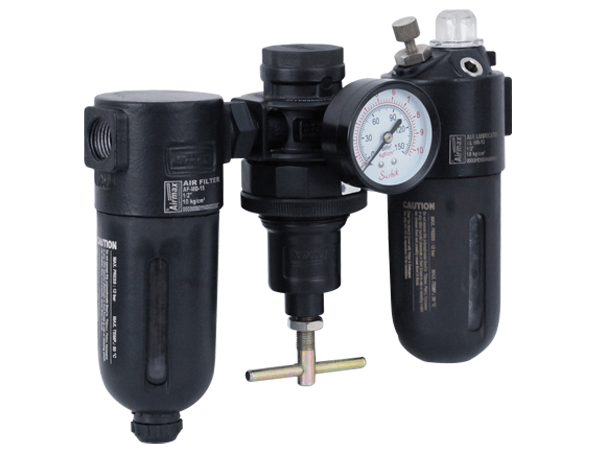

Air F+r+l Set |
| Model |
AFRL-MD-6 |
AFRL-MD-10 |
AFRL-MD-15 |
| Size |
1/4″ |
3/8″ |
1/2″ |
| Inlet Pressure |
Upto 10 Kg/cm² (max) |
| Outlet Pressure |
0 to 8 Kg/cm² (max.) |
| Temperature |
50 °C (max.) |
| Media |
Compressed Air |
| Weight |
1.397 |
1.382 |
1.367 |
