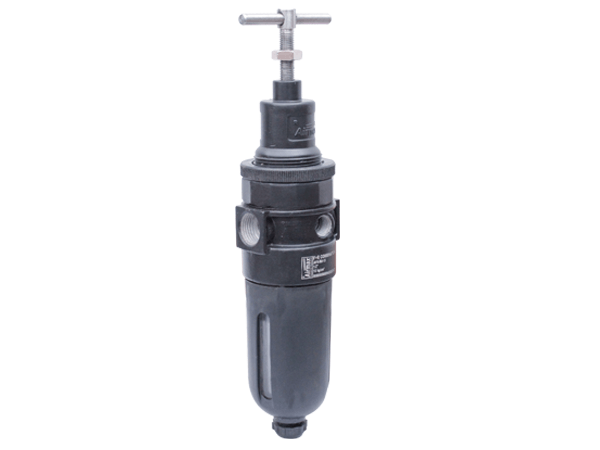

The Air Combination from Airmax Pneumatics, a top producer and supplier of air combinations in India, will help you maximize your pneumatic operations. This unit’s precise pressure regulation design ensures smooth and effective airflow by delivering a maximum outlet pressure of 8 kg/cm². Its Turn ‘T’ Type Key adjustment, designed for compressed air applications, makes it simple to control pressure; turn clockwise to raise pressure.
When selecting an air combination unit, the Affordable MIDI Series Air Combination covers basic requirements, while the Premium FO Series Air Combination delivers extended service life and improved air quality. Update your system right now!
- Compact Design & High Flow
- Piston type Design
- Comfortable to all industrial used.
- Easy Installation
| Technical Specifications |
| Product Name |
Air Combination |
| Model |
AR-MD-6 |
AR-MD-10 |
AR-MD-15 |
| Size |
1/4″ |
3/8″ |
1/2″ |
| Inlet Pressure |
Upto 10 Kg/cm² (max) |
| Outlet Pressure |
0 to 8 Kg/cm² (max.) |
| Temperature |
50 °C (max.) |
| Adjusting Setting |
Turn ‘T’ Type Key Clock wise to increase pressure |
| Flow SCFM at 5 Bar |
40 |
65 |
100 |
| Media |
Compressed Air |
| Weight |
0.472 |
0.471 |
0.461 |
