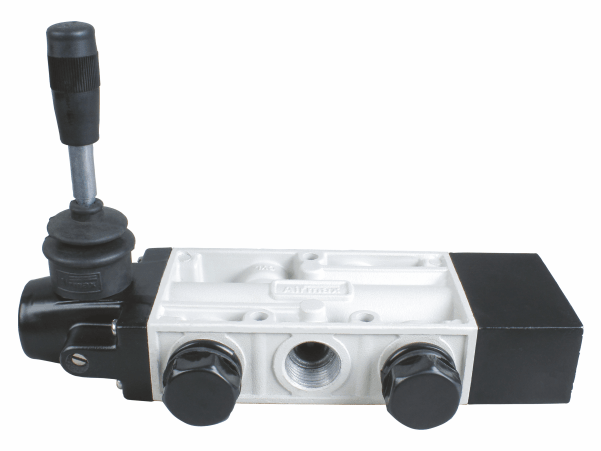

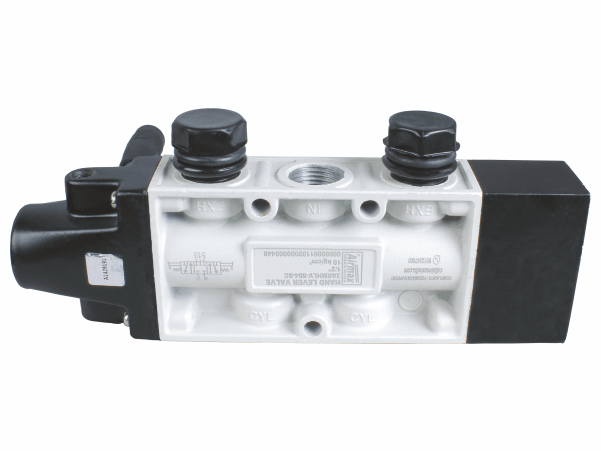

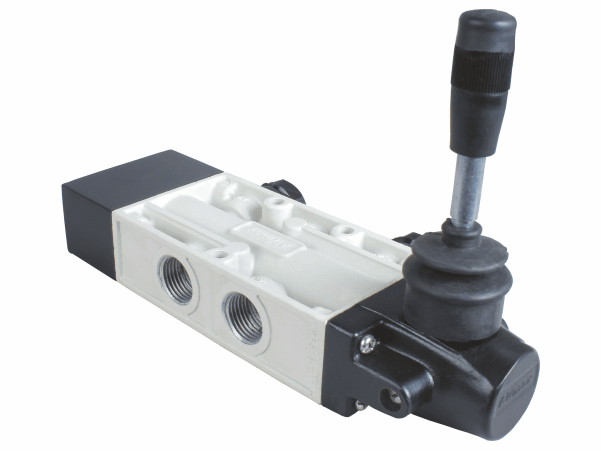

Take Control with the Airmax 5/3 Way 3 Position Hand Lever Valve (Spring Center)
The 5/3 Way 3 Position Hand Lever Valve Spring Center is available in different models and sizes. It is made of aluminum and has a nitrile seal. The valve can withstand a pressure of 10 kg/cm² and a temperature of 80°C.
Users of the 5/3 Way 3 Position Hand Lever Valve Spring Center will find that the AD – 20 series 5/3 Way Hand Lever Valve Center Spring provides a complementary option for more complex pneumatic systems.
Order your Airmax 5/3 Way 3 Position Hand Lever Valve (Spring Center) today and experience the difference!
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name |
5/3 Way 3 Position Hand Lever Valve Spring Center |
| Model |
3ARMHLV-502-SC |
3ARMHLV-504-SC |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1000 |
2500 |
| Weight (Kg) |
0.55 |
1.19 |
