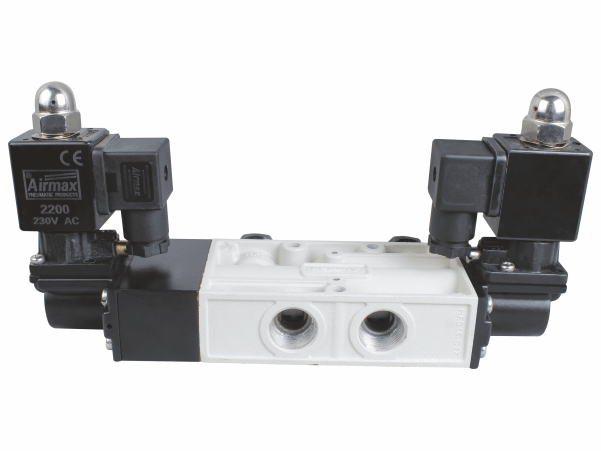

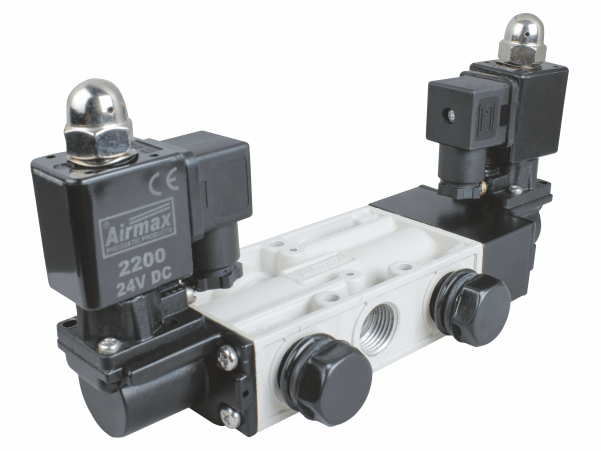

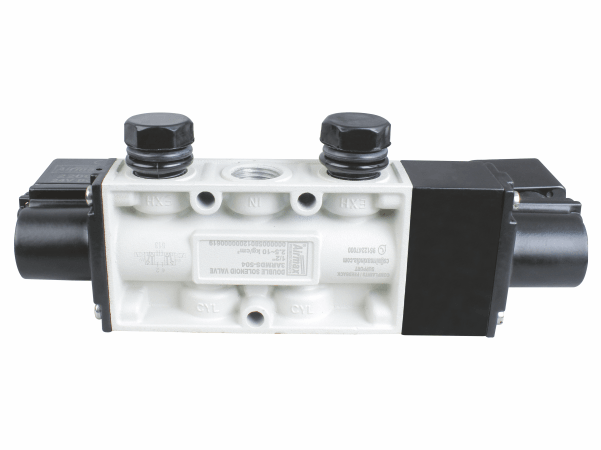

Take control of your pneumatic systems with the reliable and versatile 5/3 Way 3 Position Double Solenoid Valve from Airmax. This valve is designed to precisely direct compressed air flow within your application, offering exceptional performance at a mid-range price point.
The 5/3 Way 3 Position Double Solenoid Valve features a robust aluminum die-cast body with a powder coating for enhanced durability. It’s hard chrome plated spool ensures smooth operation and a long lifespan, minimizing maintenance needs. Additionally, the valve employs continuous duty, low-power consumption coils that are CIMFR and CE approved, guaranteeing reliable and efficient operation.
Looking for a more versatile option? Consider our 5/2 Way Double Solenoid Valve for added functionality and control. Already considering our affordable option? Upgrade to our standard 5/3 Way 3 Position Double Solenoid Valve for improved performance and durability.
Airmax proudly manufactures, supplies, and exports these valves, ensuring you receive high-quality products with global support.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications |
| Product Name |
5/3 Way 3 Position Double Solenoid Valve |
| Model |
3ARMDS – 502 |
3ARMDS – 504 |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
| Weight (Kg) |
1.25 |
1.95 |
