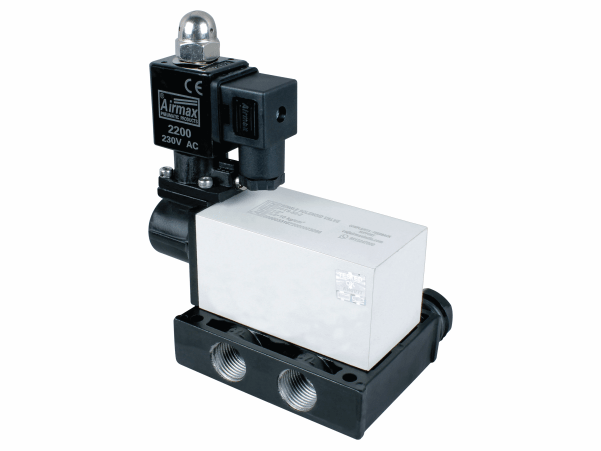

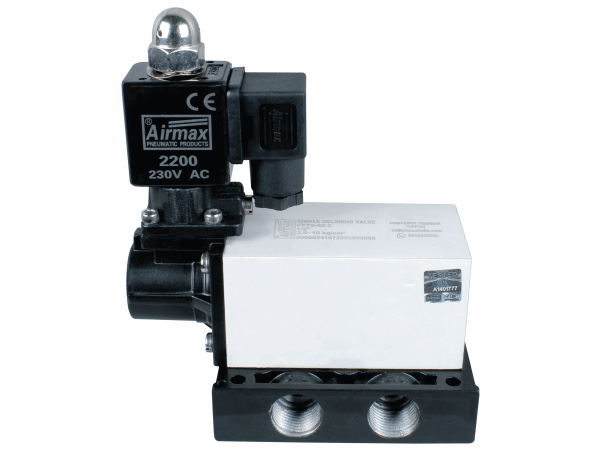

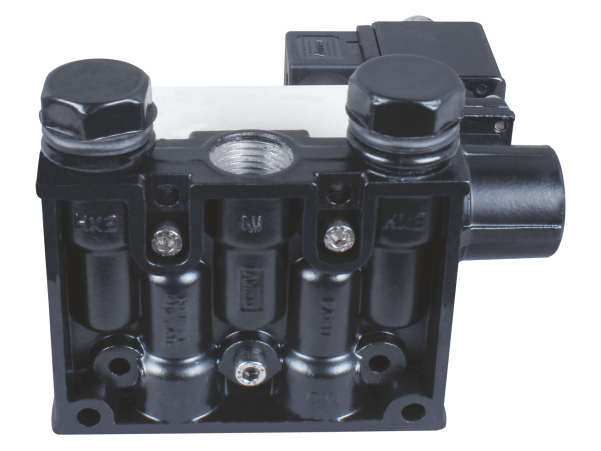

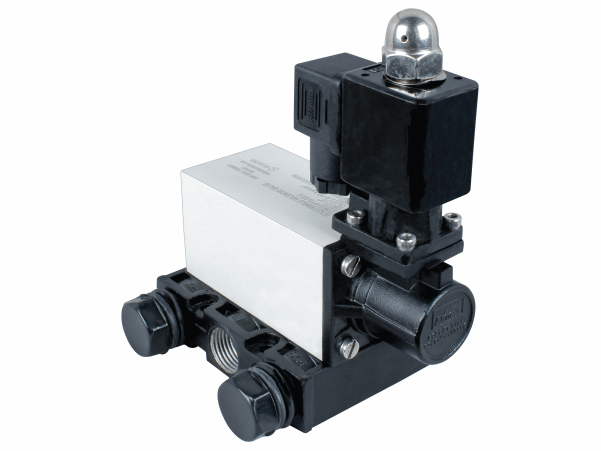

Airmax’s 5/2 Way Poppet Type Single Solenoid Valve, models PPTS-52 and PPT-52, manufactured in Ahmedabad, India, allows you to reliably control fluid flow. Looking for a reliable 5/2 Way Poppet Type Single Solenoid Valve? Since 1992, we have been the leading manufacturer and supplier in Ahmedabad, India. We take pride in our stringent quality assurance process, in which each Poppet Solenoid Valve is thoroughly tested prior to delivery to ensure peak performance.
Durable Poppet Type, Internal Pilot Operated design (External Pilot available on request) Protected to IP 65 standards, with Flameproof/Explosion Proof certification (IS/IEC 60079-1, CIMFR approved).
Looking for advanced features? Check out our premium models alongside AD – 20 Series 5/2 Way Single Solenoid Valve for a more robust setup.
- Poppet type Heavy duty Valve
- Suitable for Loading & Unloading Application
- High Flow Volume
- Fast Action
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
Technical Specifications |
Product Name |
5/2 Way Poppet Type Single Solenoid Valve |
Model |
PPTS-52-0 |
PPTS-52-1 |
PPTS-52-2 |
PPT-52-2 |
PPT-52-3 |
PPT-52-4 |
Size |
1/4″ |
3/8″ |
1/2″ |
1/2″ |
3/4″ |
1″ |
Orifice |
6 |
10 |
10 |
12 |
19 |
25 |
Design |
Poppet type, Internal Pilot Operated ( External Pilot On Request) |
Pressure |
2.5 to 10 Kg/cm² |
Temperature |
80 °C |
Leakage |
Bubble Tight |
Duty Cycle |
Continuous Rated |
Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
Connector |
DIN 43650 A |
Response Time |
15 msec ON / 25 msec OFF |
Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1300 |
1700 |
2500 |
3600 |
8000 |
11300 |
Weight (Kg) |
1.56 |
1.53 |
1.5 |
2.81 |
2.75 |
2.92 |
