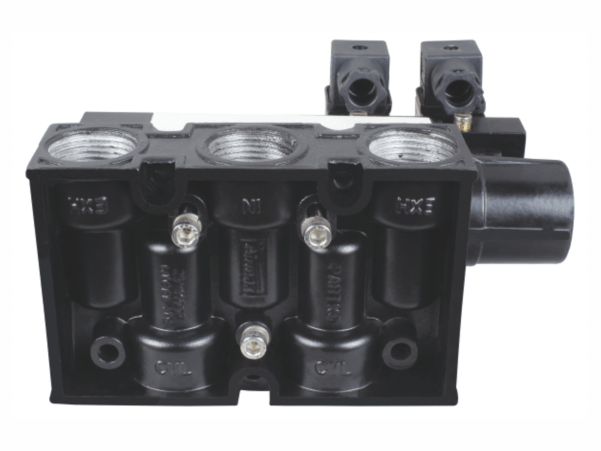

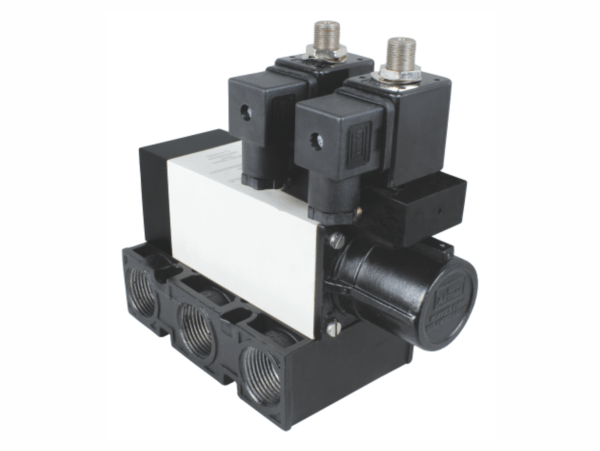

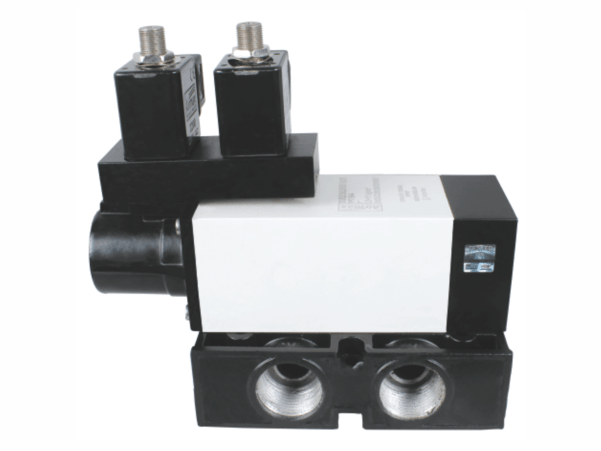

The 5/2 Way Poppet Type Double Solenoid Valve from Airmax Pneumatics is expertly crafted in our modern production facility in Ahmedabad, India, and is designed to withstand the most demanding applications. We are leading manufacturer and supplier of the 5/2 Way Poppet Type Double Solenoid Valve from Ahmedabad, India, having led the industry since 1992.
These heavy-duty valves are excellent at loading and emptying, guaranteeing dependable and effective control. Our double solenoid valves, which prioritize performance and longevity, are ideal for sectors needing strong pneumatic solutions.
5/2 Way Double Solenoid Valve offers the core functionality, but upgrading to a higher model could bring even more benefits for specialized tasks.
Our 5/2 Way Poppet Type Double Solenoid Valves may be easily incorporated into your international operations and are available for quick supply and export internationally. For premium, made-in-India goods that satisfy global standards, rely on Airmax Pneumatics.
- Poppet type Heavy duty Valve
- Suitable for Loading & Unloading Application
- High Flow Volume
- Fast Action
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications |
| Product Name |
5/2 Way Poppet Type Double Solenoid Valve |
| Model |
PPTS-55-0 |
PPTS-55-1 |
PPTS-55-2 |
PPT-55-2 |
PPT-55-3 |
PPT-55-4 |
| Size |
1/4″ |
3/8″ |
1/2″ |
1/2″ |
3/4″ |
1″ |
| Orifice |
6.5 |
10 |
12.5 |
12.5 |
20 |
25 |
| Design |
Poppet type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1300 |
1700 |
2500 |
3600 |
8000 |
11300 |
| Weight (Kg) |
1.935 |
1.895 |
1.9 |
3.175 |
3.15 |
3.32 |
