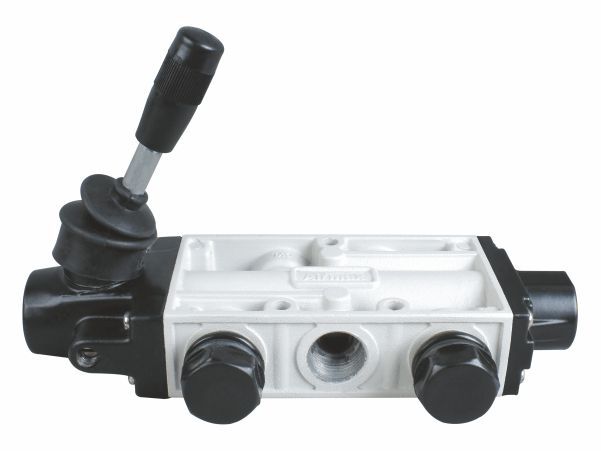

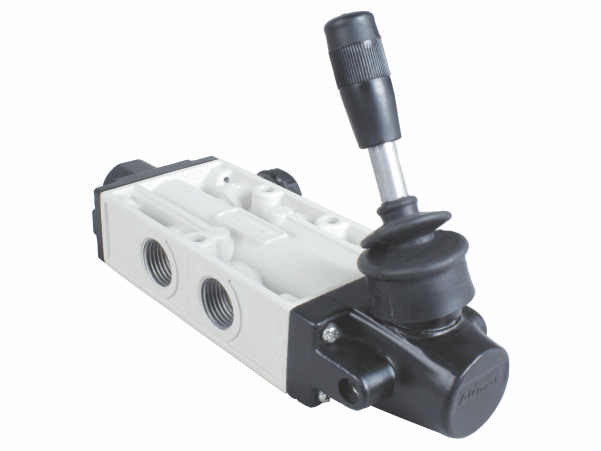

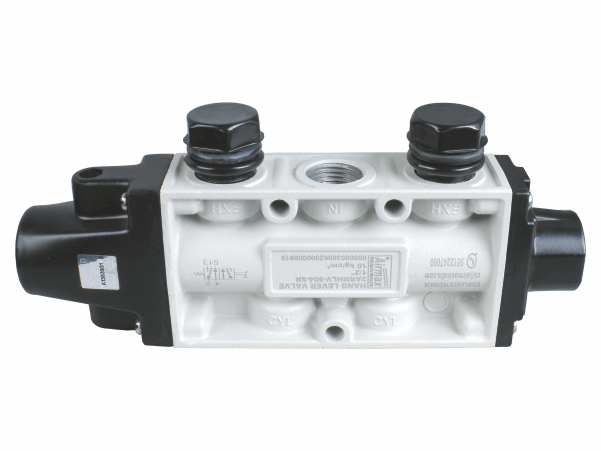

Take control with the Airmax 5/2 Way Hand Lever Valve: Spring Return/Detent (RM Series)
The 5/2 Way Hand Lever Valve Spring Return/Detent is made of aluminum and has a nitrile seal. It can withstand a pressure of 10 kg/cm² and a temperature of 80°C. The valve also has a bubble-tight leakage rate and is suitable for compressed air. Airmax India manufactures, supplies and exports these valves in India and worldwide. The RM Series is a Low Range Product. The AD – 20 Series 5/2 Way Hand Lever Valve Spring Return/Detent offers a reliable solution for controlling airflow, ensuring that the valve returns to its original position automatically when released, which is crucial for consistent operation.
Order your Airmax RM Series 5/2 Way Hand Lever Valve today and experience the difference of reliable manual control for your pneumatic systems!
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name |
5/2 Way Hand Lever Valve Spring Return / Detent |
| Model |
2ARMHLV-502 |
2ARMHLV-504 |
3ARMHLV-502 |
3ARMHLV-504 |
| Size |
1/4″ |
1/2″ |
1/4″ |
1/2″ |
| Type |
Spring Return |
Detent |
| Orifice |
6.5 |
12.5 |
6.5 |
12.5 |
| Design |
Spool type, |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
1100 |
3000 |
| Weight (Kg) |
0.39 |
0.98 |
0.4 |
0.98 |
