Take Control of Your Pneumatic Systems with Airmax’s 5/2 Way Double Solenoid Valves

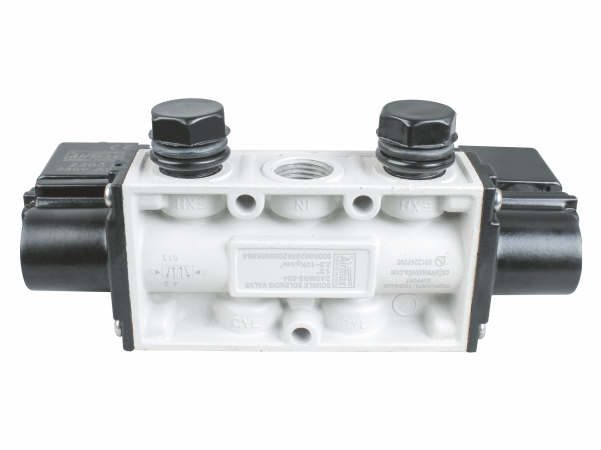

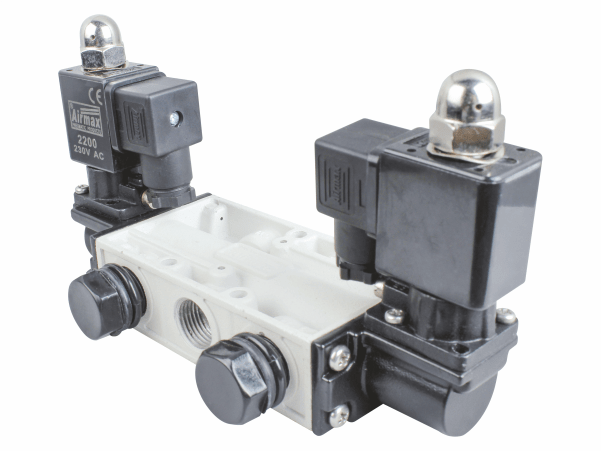

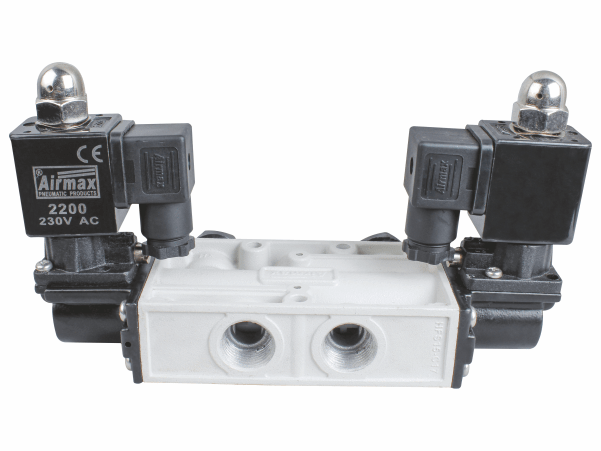

The 5/2 Way Double Solenoid Valve is manufactured by Airmax in India and is used to control the flow of compressed air in pneumatic systems. It has a compact and durable design, made of aluminum die cast with powder coating. The valve is also equipped with hard chrome plated spool for smooth and long life cycle, low power consumption coil, and superior high grade seals.

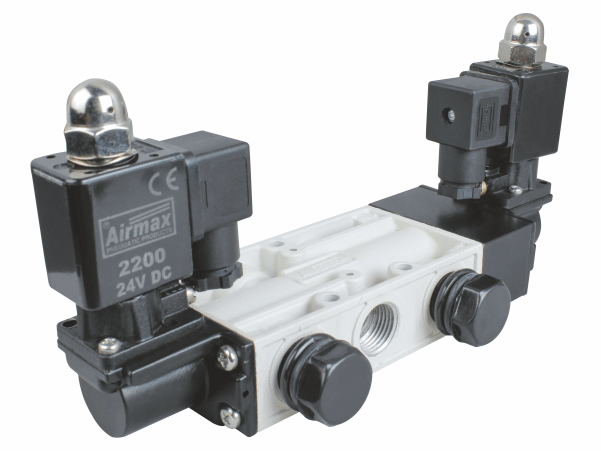

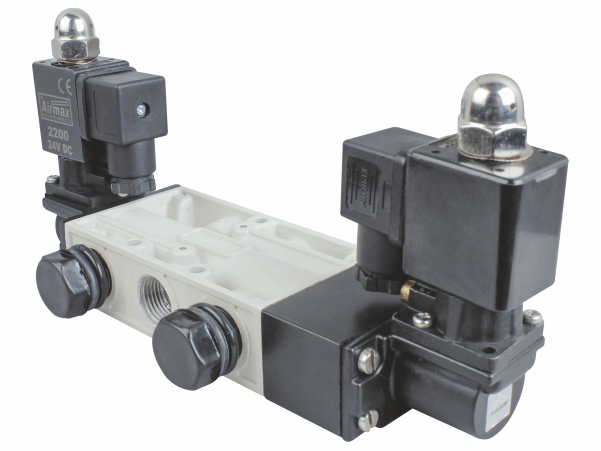

The 5/3 Way 3 Position Double Solenoid Valve provides additional control options, making it a valuable consideration for systems that require more complex directional flow management alongside this. For superior performance, the premium 5/2 Way Double Solenoid Valve offers advanced features that can significantly improve reliability and efficiency in demanding applications.
Whichever series you choose, Airmax’s 5/2 way double solenoid valves offer a winning combination of performance, reliability, and value. Contact us today to discuss your specific requirements and find the perfect valve for your pneumatic system.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications |
| Product Name |
5/2 Way Double Solenoid Valve |
| Model |
2ARMDS – 502 |
2ARMDS – 504 |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
| Weight (Kg) |
1.13 |
1.63 |
