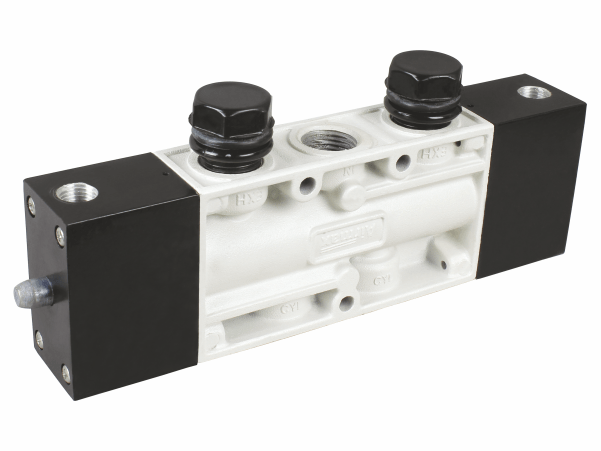

Take control of your pneumatic systems with the reliable and cost-effective RM Series 5/2 Way Double Pilot Valve by Airmax. This robust valve is built to handle the demands of various applications, offering a balance between performance and affordability.
Constructed with a heavy-duty, powder-coated aluminum die-cast body, the RM Series ensures long-lasting durability. The hard chrome plated spool minimizes friction and extends the valve’s lifespan, while superior high-grade seals guarantee leak-proof operation. A simple design allows for easy maintenance, minimizing downtime.
The RM Series is ideal for those seeking a mid-range solution for their pneumatic systems. For applications requiring premium performance, consider our AD-20 Series. For a more budget-friendly option, explore our AMV Series.
Airmax proudly manufactures, supplies, and exports the RM Series valves, offering them not just in India but throughout the world. Contact us today to discuss how the RM Series can enhance your pneumatic system’s efficiency and control.
For those looking to optimize their pneumatic systems, utilizing both the 5/2 Way Double Pilot Valve and the AD – 20 series 5/2 Way Double Pilot Valve can enhance overall performance.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name |
5/2 Way Double Pilot Valve |
| Model |
2ARMPV-D-502 |
2ARMPV-D-504 |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
| Weight (Kg) |
0.456 |
1.13 |
