| Technical Specifications |
| Product Name |

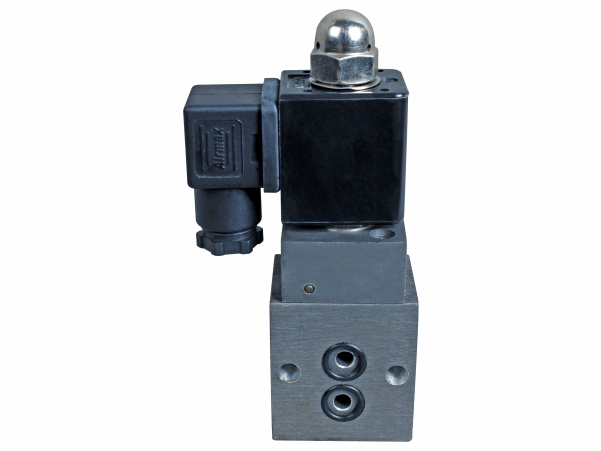

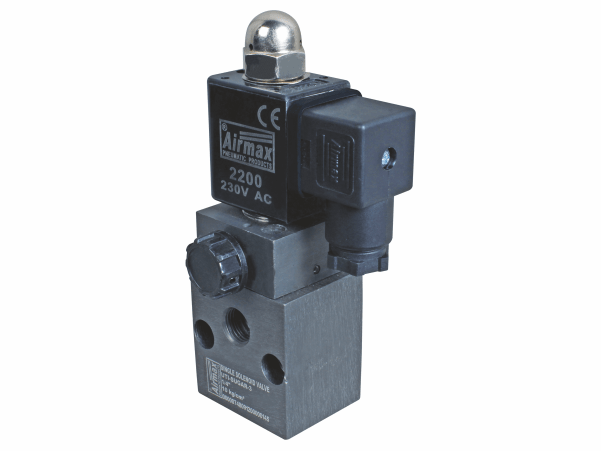

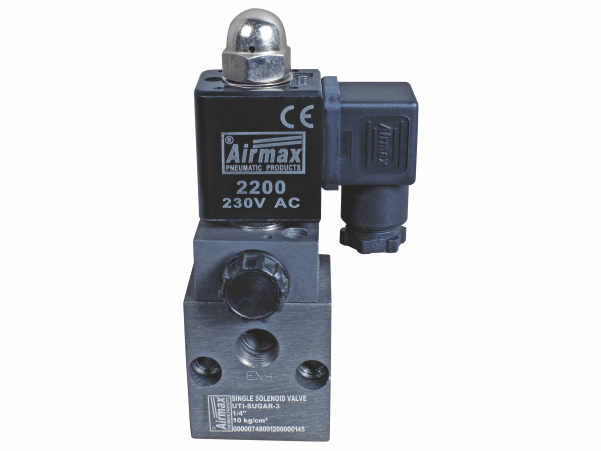

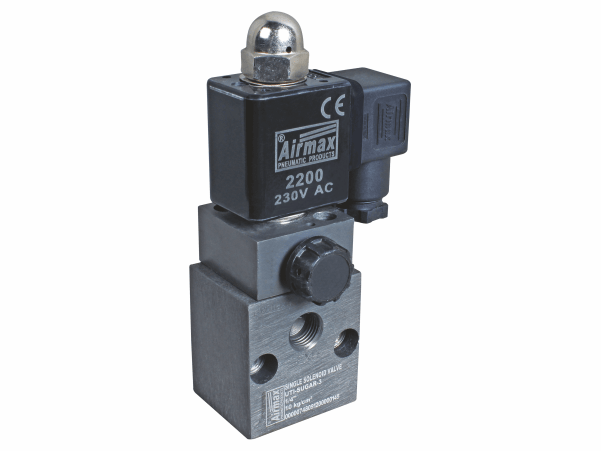

3/2 Way Poppet Type Sugar Solenoid Valve |
| Model |
UTI – SUGAR – 302 |
| Size |
1/4″ |
| Design |
Poppet type, |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) |
0.59 |
