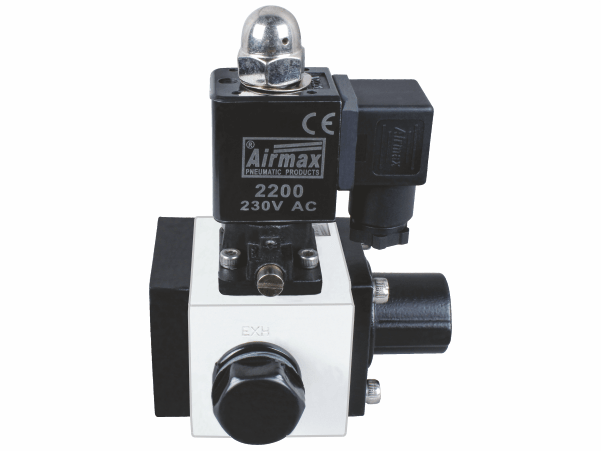

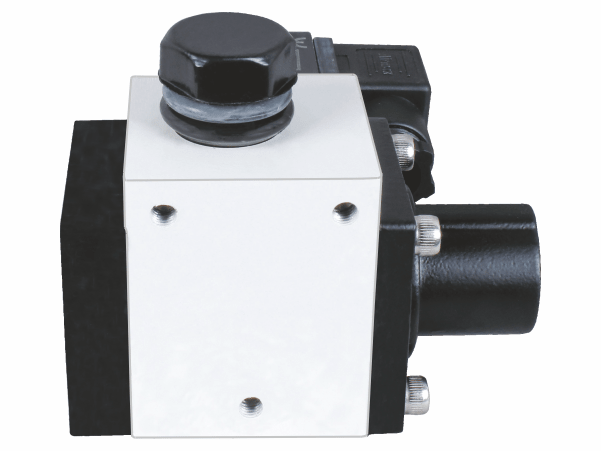

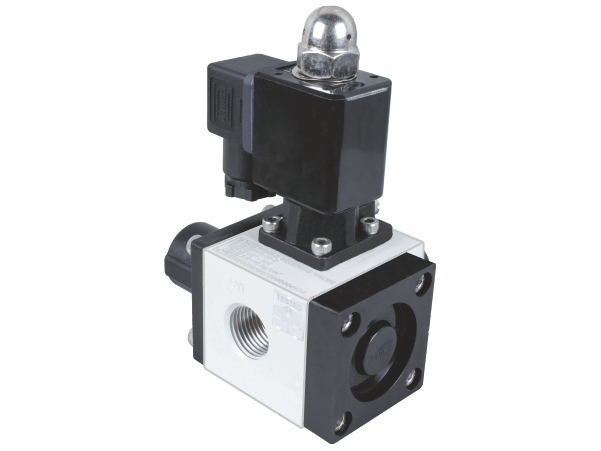

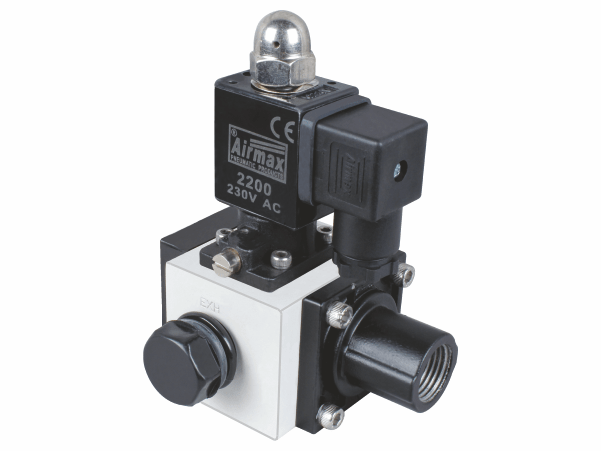

For accurate control in fluid power systems, the PPT-32 is a dependable 3/2 way poppet type single solenoid valve. With sizes of 1/2″, 3/4″, 1″, and 1.½”, this valve can be used for a variety of purposes. Airmax manufactures 3/2 Way Poppet Type Single Solenoid Valve in Ahmedabad, India, where we thoroughly test every Poppet Solenoid Valve prior to delivery to guarantee that our customers receive dependable, fully functional products.
We lead as manufacturers and exporters of the 3/2 Way Poppet Type Single Solenoid Valve in Ahmedabad, India, a position we’ve held since 1992.
Furthermore, we uphold our standards of excellence by using only premium raw materials in the in-house manufacturing of all of our products, including the PPT-32.
If you’re looking for a comprehensive solution, don’t miss out on the additional tools that work seamlessly with the affordable AMV Series 3/2 Way Single Solenoid Valve to improve your overall setup.
- Poppet type Heavy duty Valve
- Suitable for Loading & Unloading Application
- High Flow Volume
- Fast Action
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Overator Push. Rotate & Lockable tvpe.
| Technical Specifications |
| Product Name |
3/2 Way Poppet Type Single Solenoid Valve |
| Model |
PPT – 32 – 2 |
PPT – 32 – 3 |
PPT – 32 – 4 |
PPT – 32 – 5 |
| Size |
1/2″ |
3/4″ |
1″ |
1.1/2″ |
| Orifice |
12.5 |
20 |
25 |
40 |
| Design |
Poppet type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
3500 |
8000 |
11300 |
17000 |
| Weight (Kg) |
0.86 |
2.03 |
2.205 |
5.29 |
