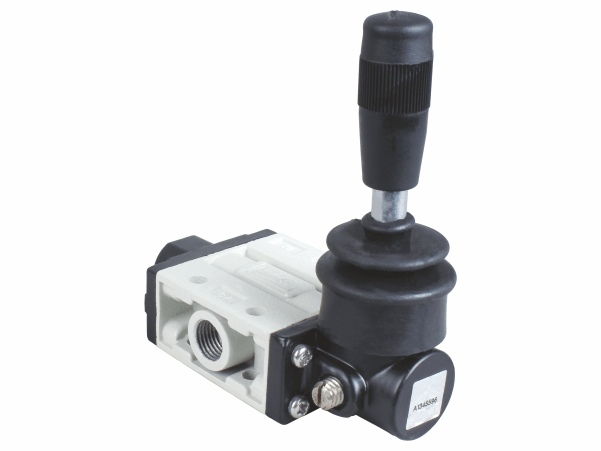

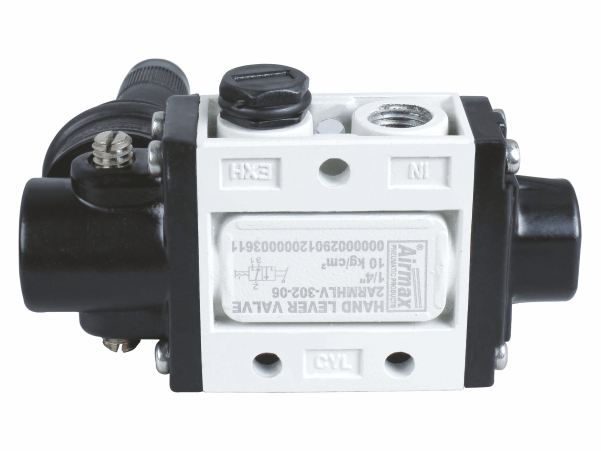

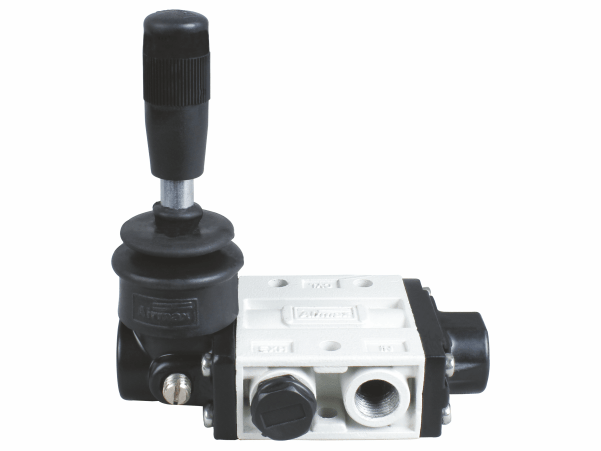

Take control with the Airmax 3/2 Way Hand Lever Valve: Your reliable compressed air flow solution.
The 3/2 Way Hand Lever Valve is manufactured by Airmax and comes in different models and sizes. The valve is made of aluminum die cast and has nitrile seals, making it resistant to pressure up to 10 Kg/cm² and temperature up to 80°C. It is also bubble tight and has a flow rate of 1100 NLPM at 5 BAR.
The AD – 20 Series 3/2 Way Hand Lever Valve offers both spring return and detent options, making it versatile for different applications.
Airmax – We manufacture, supply, and export these valves throughout India and worldwide. Contact us today to discuss your compressed air control needs!
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name |
3/2 Way Hand Lever Valve |
| Model |
2ARMHLV – 302 |
2ARMHLV – 304 |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
| Weight (Kg) |
0.31 |
0.89 |
